Tracing

OpenTelemetry-based observability for AI applications

Rhesis Tracing provides comprehensive observability for your AI applications built on the OpenTelemetry standard. It captures detailed traces of LLM calls, tool invocations, and retrieval operations with a semantic layer designed specifically for AI workloads.

Key Features

• OpenTelemetry Standard - Built on industry-standard OTLP protocol
• AI Semantic Layer - Framework-agnostic naming conventions for AI operations
• Two Operating Modes - Test mode (linked to test runs) and production mode (live monitoring)
• Auto-Instrumentation - Zero-config tracing for LangChain and LangGraph
• Convenience Decorators - Pre-configured decorators for common AI operations

Core Concepts

What is a Trace?

A trace represents the complete journey of a single request through your application. It captures everything that happens from when a user sends a message to when they receive a response.

What is a Span?

A span represents a single operation within a trace. Each function call, LLM invocation, or tool execution creates a span with:

• Name - What operation occurred (e.g., ai.llm.invoke, function.chat)
• Duration - How long it took
• Attributes - Metadata like model name, token counts, or tool parameters
• Status - Success or error

Trace Hierarchy

Spans are organized in a parent-child hierarchy. The root span represents the entry point, with child spans for each nested operation:

In this example:

• The trace captures a complete chat interaction
• The root span (function.chat) is the entry point
• Child spans show each nested operation with timing

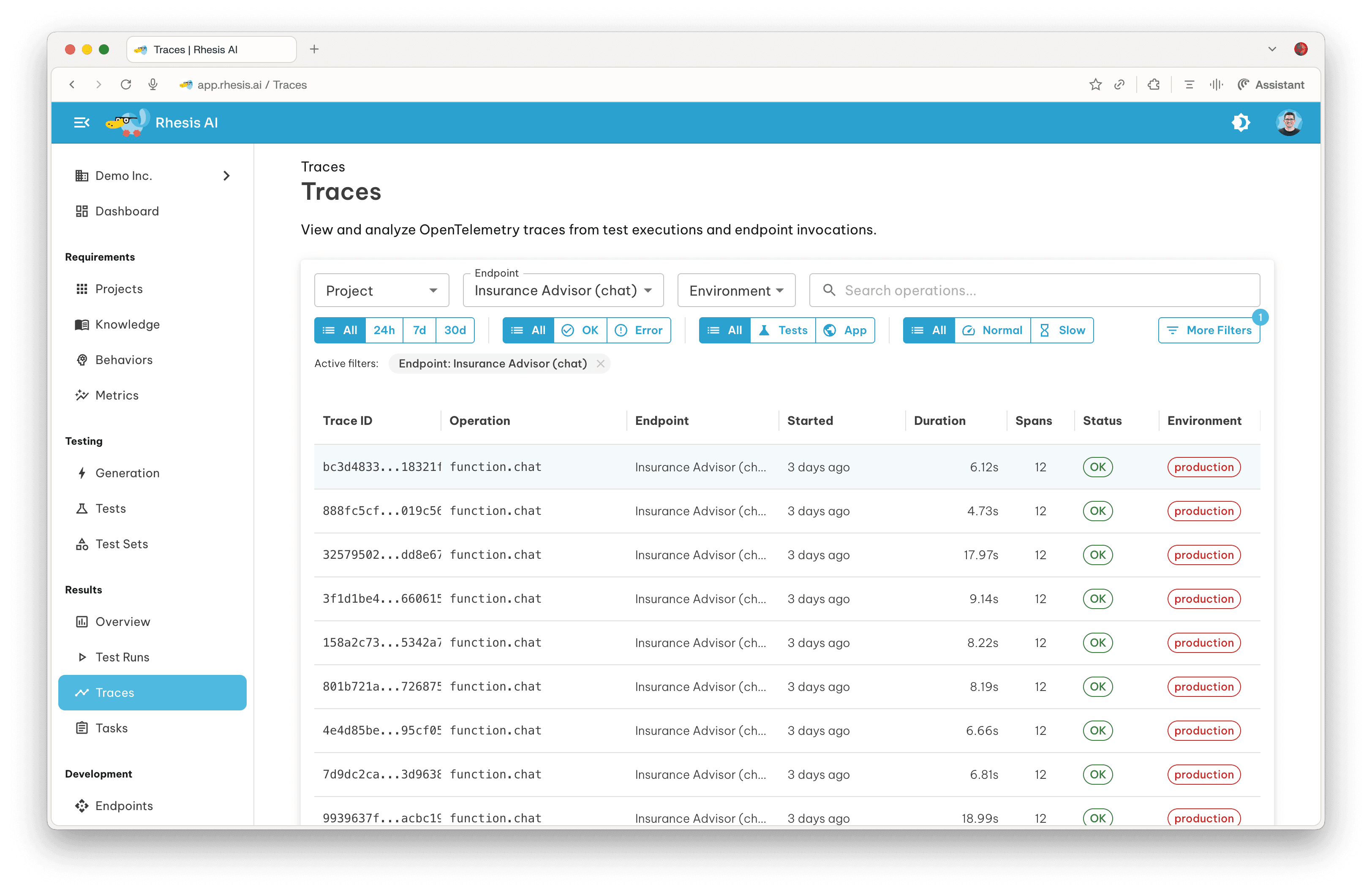

Traces Dashboard

View all traces from your application in the Rhesis dashboard. Each row shows the operation name, linked endpoint, duration, span count, status, and environment.

Quick Start

from rhesis.sdk import RhesisClient, observe

# Initialize client (required for tracing)
client = RhesisClient(
    api_key="your-api-key",
    project_id="your-project-id",
    environment="development",
)

# Use convenience decorators for common operations
@observe.llm(provider="openai", model="gpt-4")
def call_llm(prompt: str) -> str:
    return openai.chat.completions.create(
        model="gpt-4",
        messages=[{"role": "user", "content": prompt}]
    )

# Traces are automatically sent to Rhesis
response = call_llm("What is machine learning?")

Endpoints Are Automatically Traced

Functions decorated with @endpoint are automatically traced. See the Connector documentation for details on endpoint registration.

from rhesis.sdk import endpoint

@endpoint()
def chat(input: str, session_id: str = None) -> dict:
    # This function is automatically traced
    return {"output": process_message(input), "session_id": session_id}

How It Works

Traces are sent via HTTP (not WebSocket), batched and exported every 5 seconds.

Operating Modes

Test Mode

Traces originate from test runs triggered through the platform or SDK. Linked data is preserved:

• The endpoint being tested
• The test run that initiated the trace
• The specific test case being executed

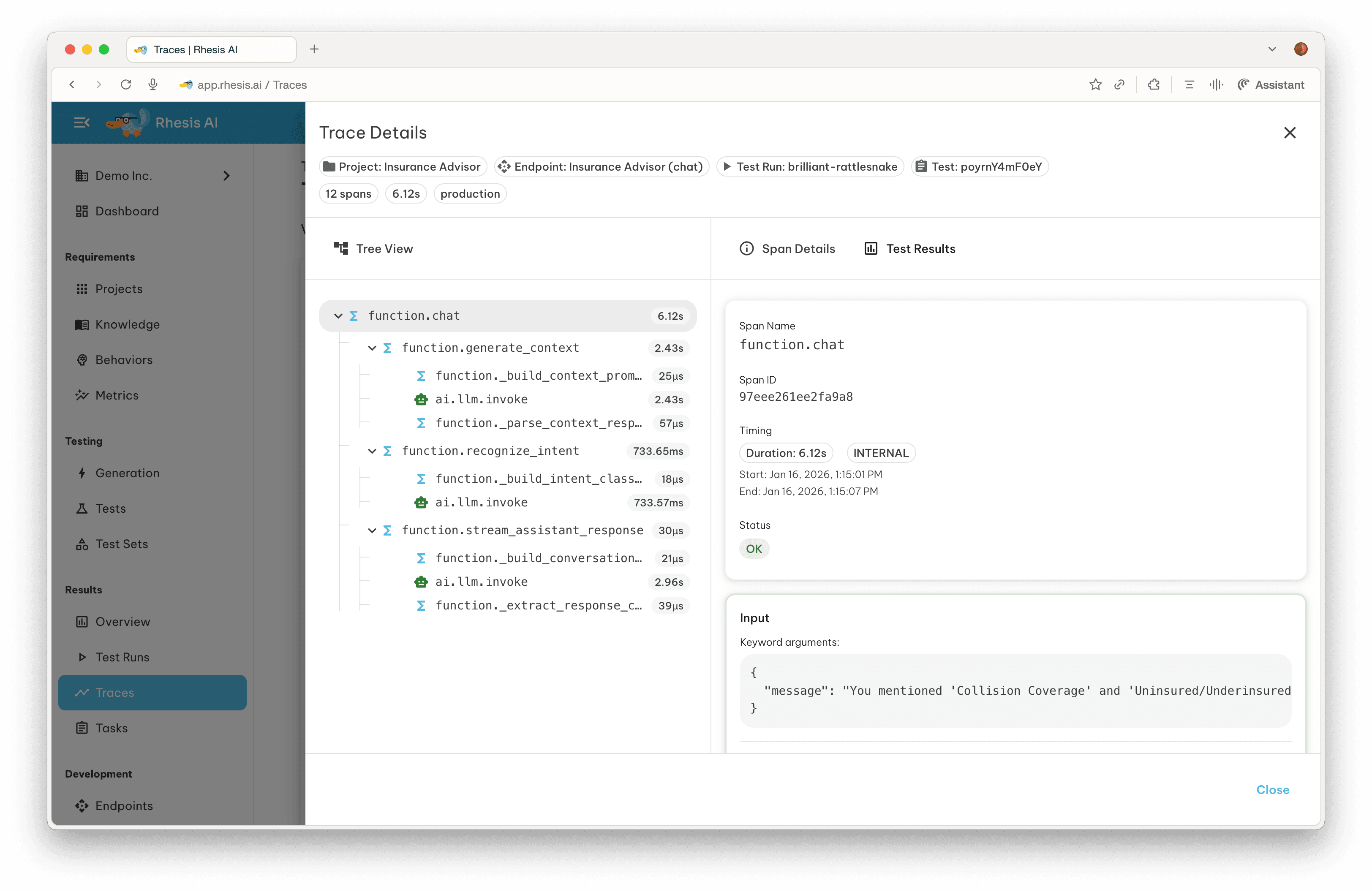

Click any trace to view its span hierarchy, timing breakdown, and linked test results:

Production Mode

Traces originate from normal application operation. They capture live behavior for monitoring and performance analysis.
